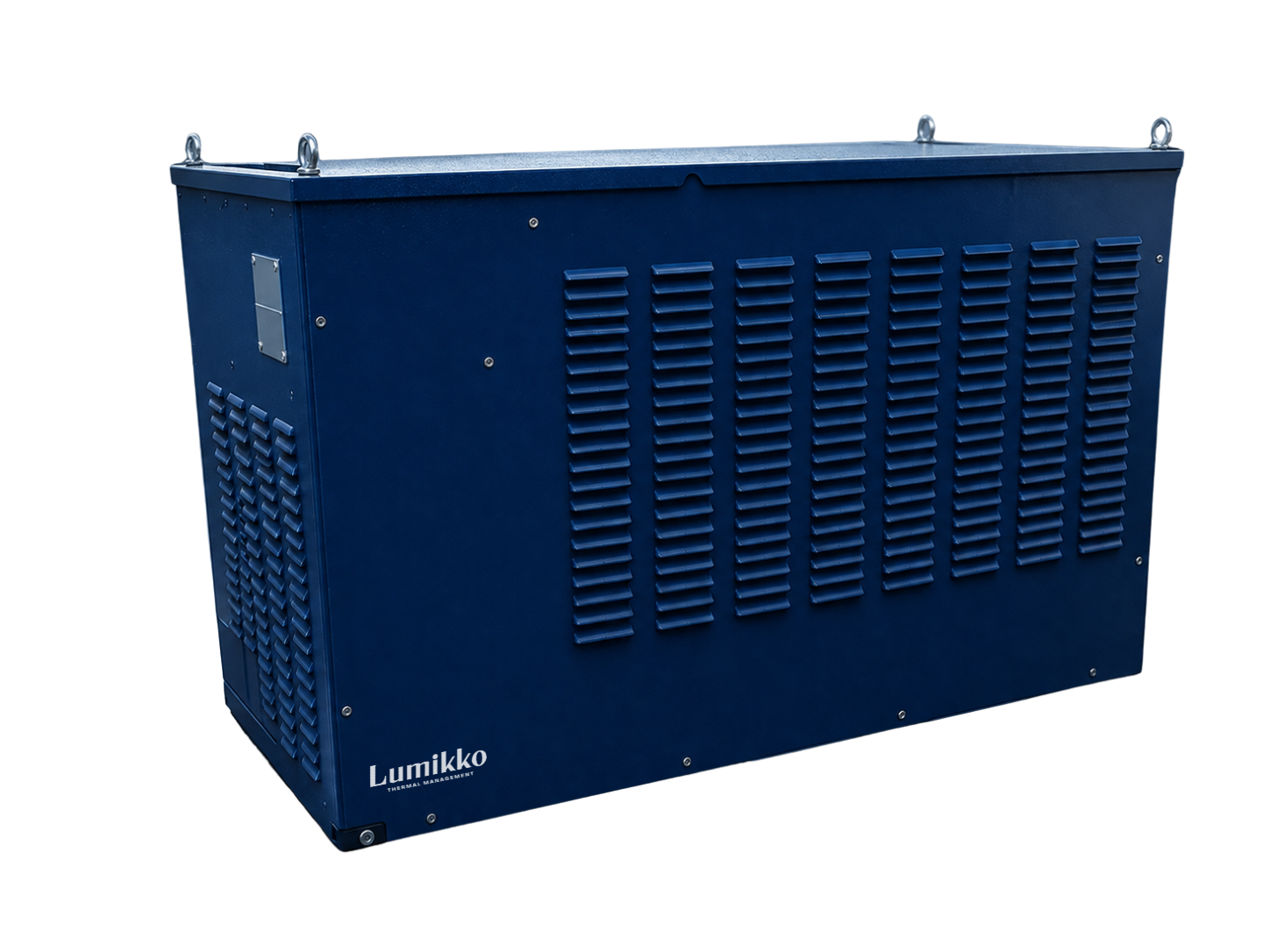

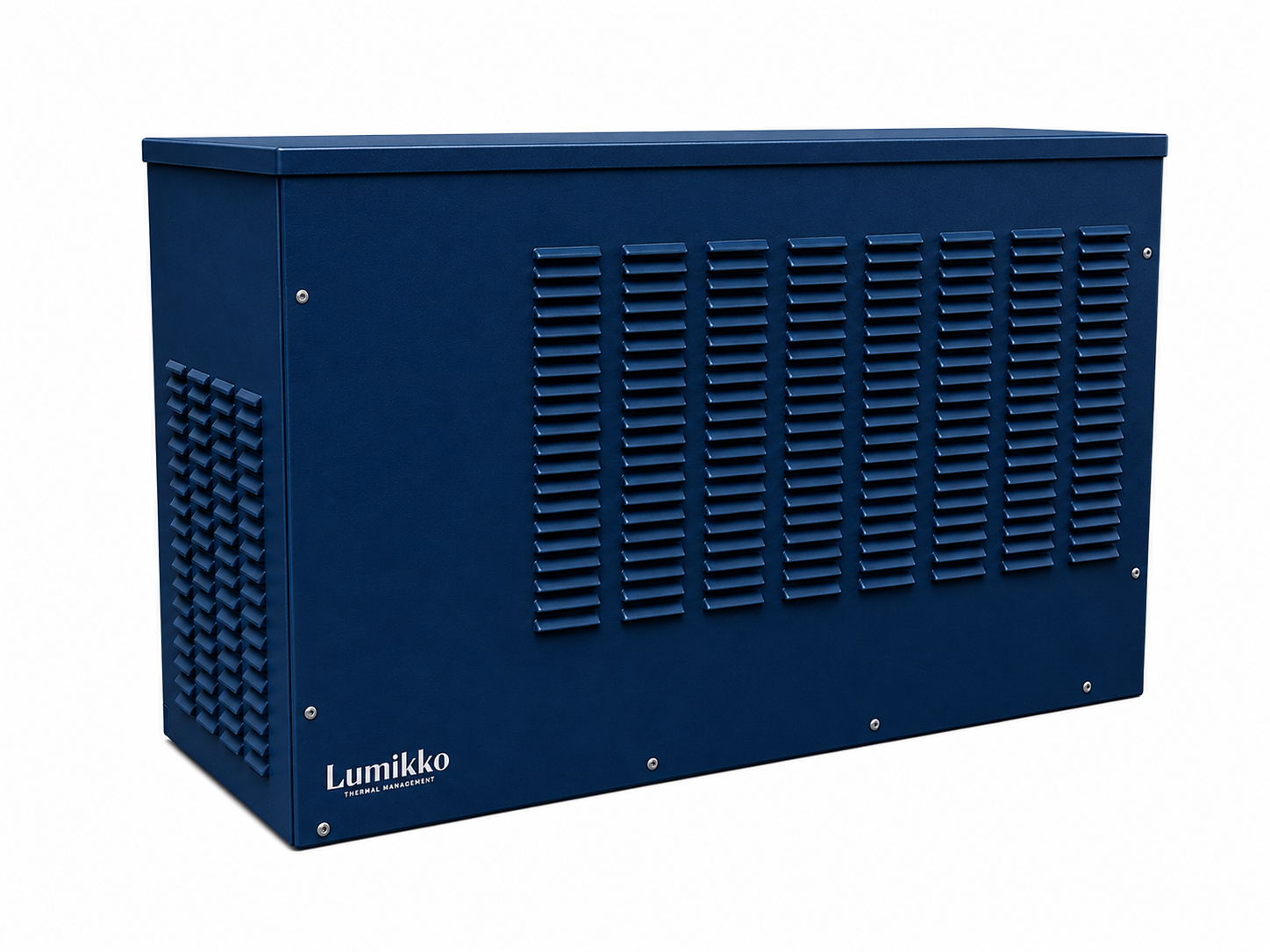

Lumikko BTMS – Custom battery thermal management for demanding railway environments
As railway applications become more electrified, battery systems require reliable and precisely controlled thermal management. Lumikko BTMS (Battery Thermal Management System) is a liquid cooling system that can be tailored to the technical and operational requirements of railway vehicles, onboard energy systems and project-specific electrified rail applications. Designed for demanding conditions, Lumikko BTMS helps manage battery temperatures efficiently, supports long component lifetime and enables system integration within the constraints of railway vehicle architecture.
Built on over 50 years of expertise, Lumikko designs solutions that perform reliably in the toughest conditions – whether facing heavy vibration, marine environments, or extreme temperature shifts.
A well-designed Battery Thermal Management System helps maintain battery operation within the desired temperature range, supports predictable performance and reduces unnecessary stress on battery components. Battery temperature affects performance, charging behavior, operating lifetime and system availability. In railway applications, thermal management must perform consistently across changing ambient temperatures, fluctuating loads and long operating cycles.
Battery thermal management designed around your railway application
Every railway project is unique. Existing vehicle structures, limited installation space, interfaces, safety requirements, maintenance access and operating conditions all influence the final solution. That is why Lumikko BTMS is not a one-size-fits-all unit. It is a customizable thermal management solution that can be configured and adapted to meet the needs of specific railway applications. Whether the project involves a new electrified rail vehicle, an onboard battery system or a retrofit application, Lumikko supports customers identifying the right technical concept for reliable battery temperature control.
European standard readiness
European railway standards form the backbone of our customers’ compliance requirements. We customize each solution to meet every customer’s specific operational and regulatory needs.
- EN 50125 – Environmental conditions from -25°C to 55°C
- EN 45545 – Fire & Smoke
- EN 61373 – Shock and Vibration Testing
- EN 50155 – Electronic equipment
- EN 60077 – Electric equipment
Key features and benefits of Lumikko Battery Thermal Management System
- Configurable power range
- Free cooling without compressor at low ambient temperatures

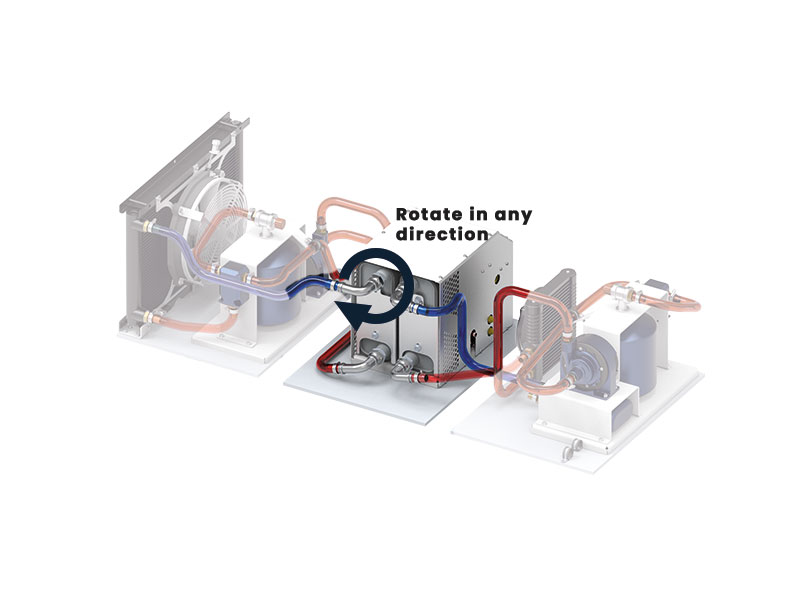

- Adaptable integration
- Designed for -45°C to 55°C operating temperature range
- Suitable for project specific customization
- Lifecycle-oriented design
| Technical information | |
| Cooling capacity: | Request a data sheet for detailed information |
| Liquid set-up temperature: | 10˚C/ 20˚C/ 25˚C (adjustable) |
| Ambient temperature: | -45˚C – +55˚C |
| Supply Voltage: | 550-850 VDC |
| Refrigerant: | R290 (propane) |

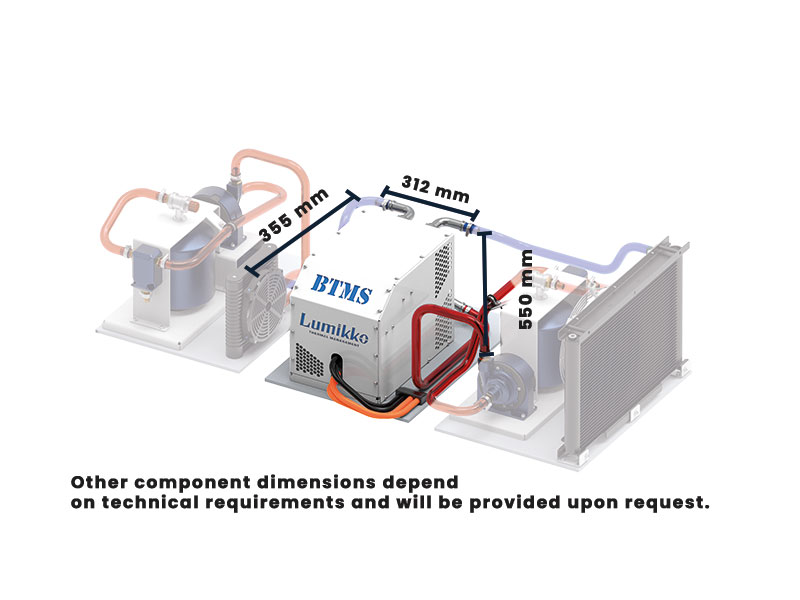

| Measures: | 312 x 355 x 550 mm (main unit) Other dimensions are provided regarding your technical requirements. |
| Control: | PLC |
Typical applications for Lumikko BTMS:
- Dumper
- Wheel loader
- Straddle carrier
- Earthmoving machine
- Mining machine
- Port machine
- Railway
- Tram
- Truck
Configurate a system for your needs
Fill in your contact information and download the Datasheet
Our Partners that trusted us with Battery Thermal Management
Request a Quote
Learn more about our BTMS solutions
Battery cooling system 3-8,5 kW (BTMS)
Lumikko’s battery cooling system is designed for the thermal management of batteries in electric and hybrid vehicles. The system supports optimal battery performance even in demanding operating conditions.
Battery cooling system, 10 kW
Lumikko’s 10 kW battery cooling system delivers reliable thermal management for high-power batteries in demanding electric and hybrid applications, ensuring dependable operation in all conditions.
BTMS solutions for heavy machinery
Explore BTMS solutions for heavy machinery
References
Battery cooling system for Sandvik
Battery-powered mining equipment is changing how underground operations are run. By eliminating emissions, enabling remote operation, and reducing ventilation requirements, companies like Sandvik are taking significant steps toward more efficient and sustainable mining.
Adaptive heating with the use of braking energy -Tampere Tramway
Lumikko’s regenerative braking system is an innovative and environmentally friendly solution that utilises the energy generated by tram braking and stores it in an innovative brake resistor system integrated into the HVAC device. The system converts kinetic energy into electrical energy that can be used to heat the cabin or stored for later use. In this way, the system reduces the energy consumption and emissions of trams and improves passenger comfort.
